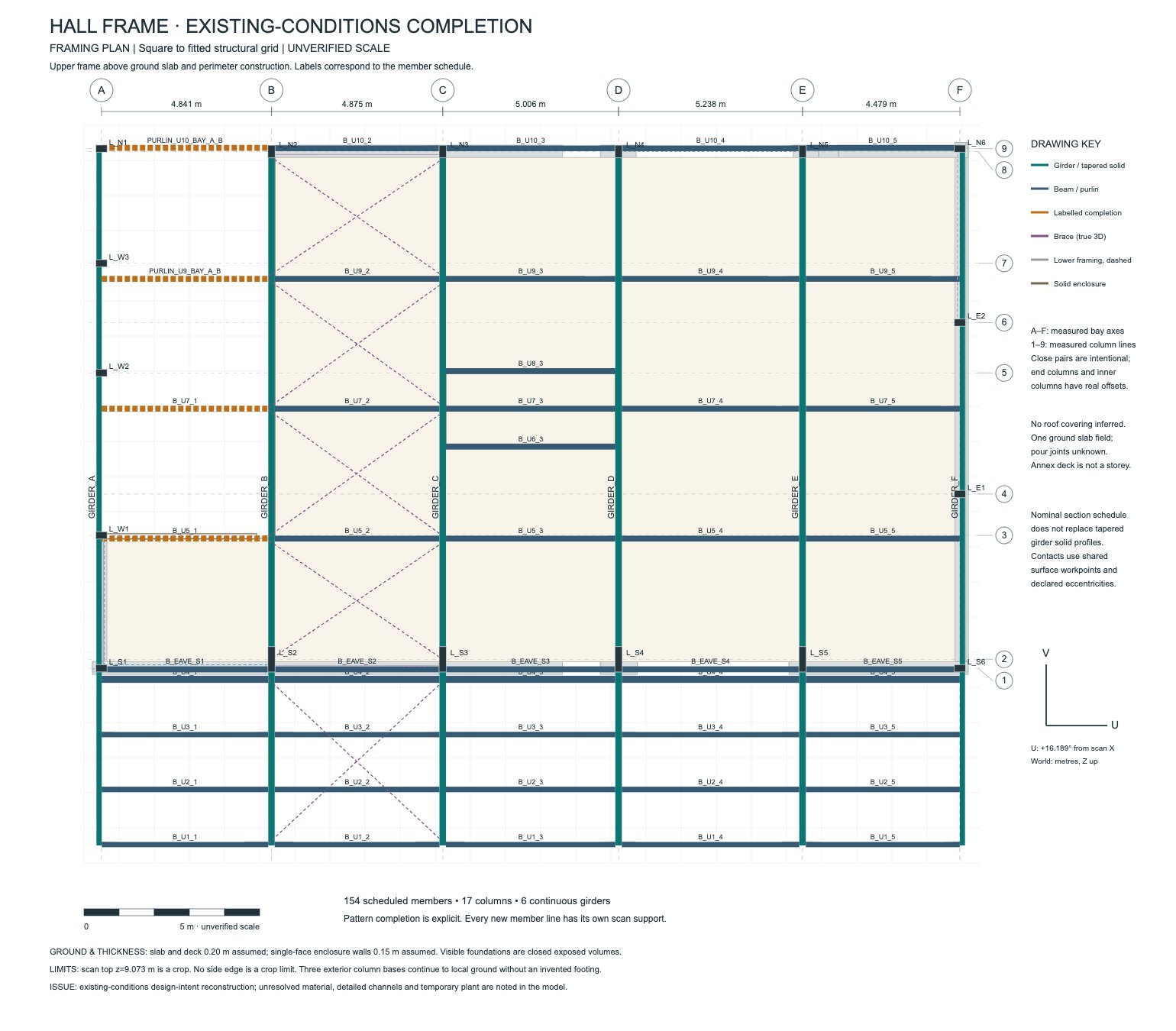

This is a terrestrial laser scan of a timber-frame hall under construction, about 29 × 27 m. Drawn over it is the as-built frame model Landex built from the scan.
Every column, girder, beam, purlin, post and brace as a solid member with its measured section, joined at shared nodes on the fitted structural grid, plus the slab, plinths and infill walls. Members the scanner could only partly see are completed from the frame's repeating bays and say so. Hover or tap a member to read it.
Elements in the model
Click a type to hide or show it. Elements the scan only partly covered are marked with their observed fraction; ones inferred from partial evidence say so rather than posing as measured.
